Assembly aid for the Component Kit to connect a machine to the mobile robot base.
General Information:

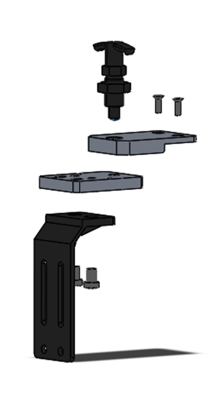

Assembly Parts
Required Tools:
- Hex keys of sizes 4 and 8 mm.
Procedure:
The kit enables precise positioning of the mobile robot base using two flange plates that are mounted directly on the machine or wall. The counterparts (centering plate and centering pin) are installed on the MRB workbench.
The flange plate is attached to the mounting surface using 2 screws provided. The machine flanges are mounted on the machine. The product can then be secured to the machine flanges with the help of the latch pins.

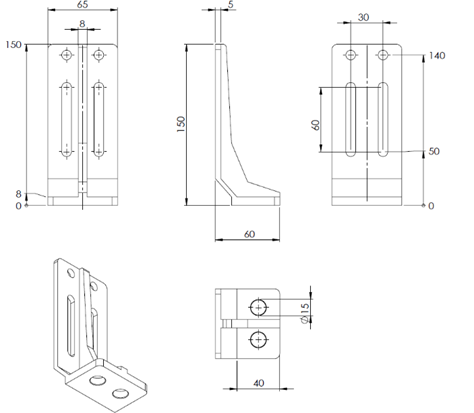

Angle for machine flange - vertical installation

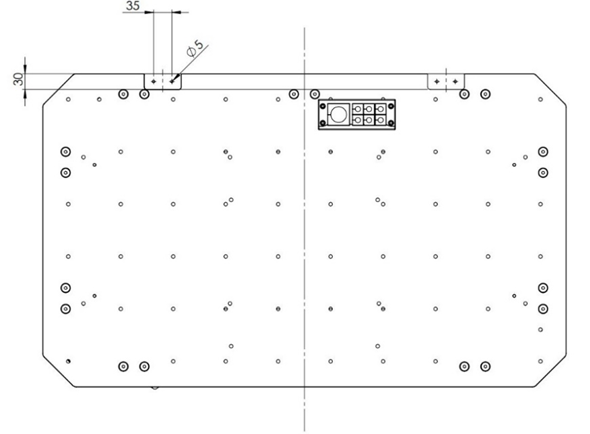

Dimensions of the cutout for the mounting device (applicable for MRB S, M, and L)

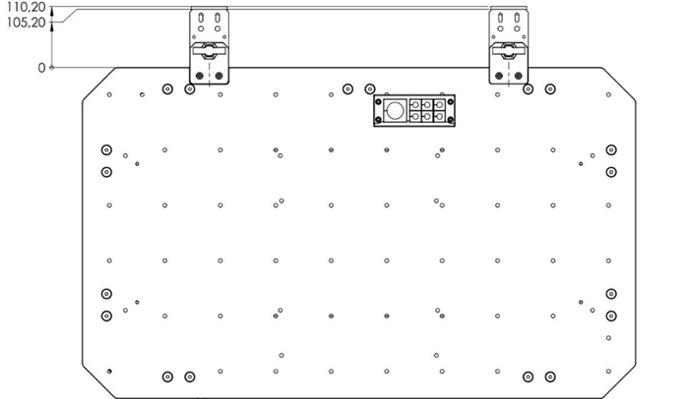

Dimensions of the flange plate (for horizontal installation) and machine flange (for vertical installation), applicable for MRB S, M, and L.
Dimensions of the mounting device for flange plates and machine flanges for MRB S.

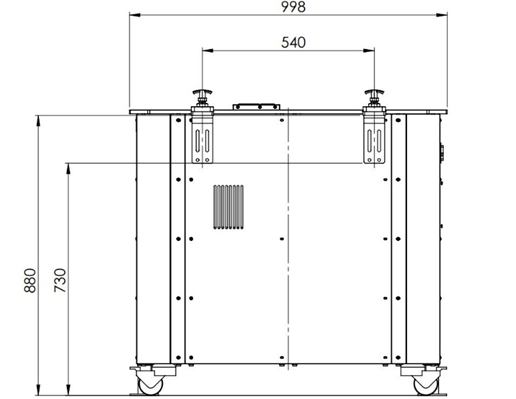

Dimensions of the mounting device for flange plates and machine flanges for MRB M.

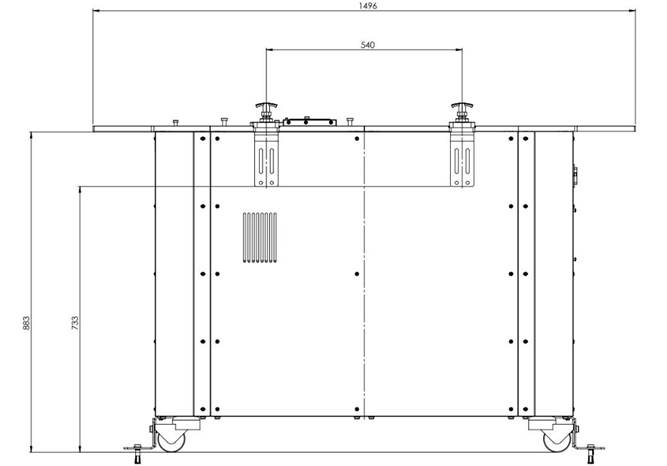

Dimensions of the mounting device for flange plates and machine flanges for MRB L.
