The following chapters describe various sample programs for Modbus communication via PLC (Simatic S7-1200, TIA Portal v16).
1. Reading horstFX Bool-Register
Learn how to read a Bool value from a Modbus-Coil (Address 1000) in Siemens TIA Portal (v16) with this guide.
1.1 Function Block

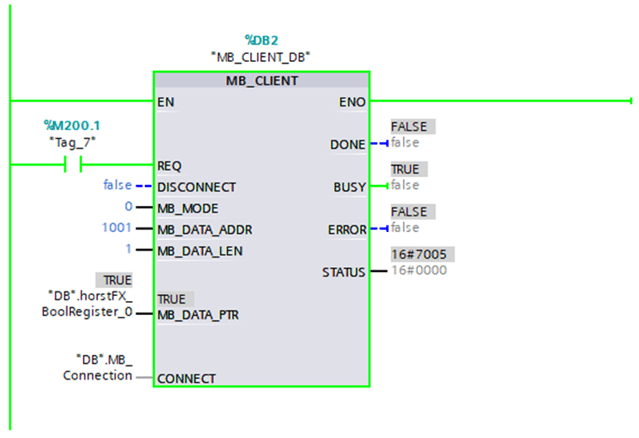

Using the MB_CLIENT function block, you can read a Bool (1-bit) from the Modbus Coils.
In this function block, the Modbus-Coil-Register starts at MV_DATA_ADDR 1, which corresponds to Coil Entry Number 0.
Since the Bool registers start at Address 1000, you need to pass MV_DATA_ADDR 1001 to this function block (1 + 1000) to query the value of Bool Register 0.
Upon successful reading, the value is written to the MB_DATA_PTR variable. This variable must be of type real.
1.2
Data Structure

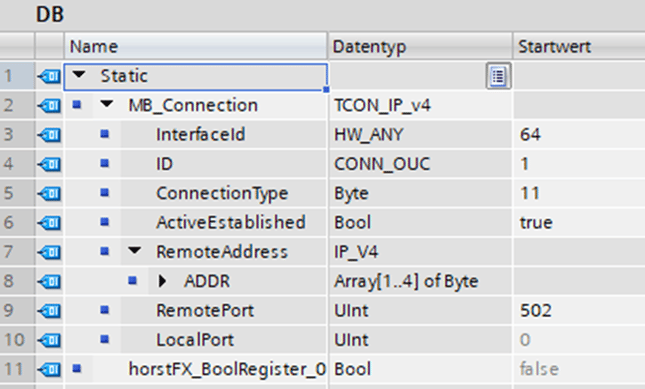

For the sake of completeness, the data structure used in this example is provided below.
The parameters for establishing the connection can be found under the variable MB_Connection.
The value of Bool Register 0 is written to the variable horsFX_BoolRegister_0.
The associated TIA project can be downloaded here:
2. Reading horstFX Float-Register
Discover how to read a 32-bit floating-point value from two Modbus-Holding-Registers (Address 2000 and 2001) in Siemens TIA Portal (v16) with this helpful guide.
2.1 Function Block

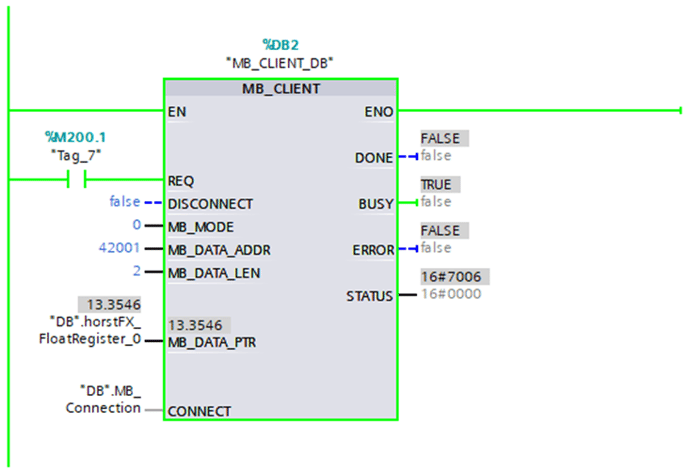

Using the MB_CLIENT function block, you can read two 4-byte words from the Modbus Registers.
In this function block, the Modbus Holding Register starts at MV_DATA_ADDR 40001, which corresponds to Holding Register Entry Number 0.
Since the Float Registers start at Address 2000, you need to pass MV_DATA_ADDR 42001 to this function block (40001 + 2000) to query the value of Float Register 0.
Since two registers need to be read, the MB_DATA_LEN is set to 2.
Upon successful reading, the value is written to the MB_DATA_PTR variable. This variable must be of type real.
2.2 Data Structure

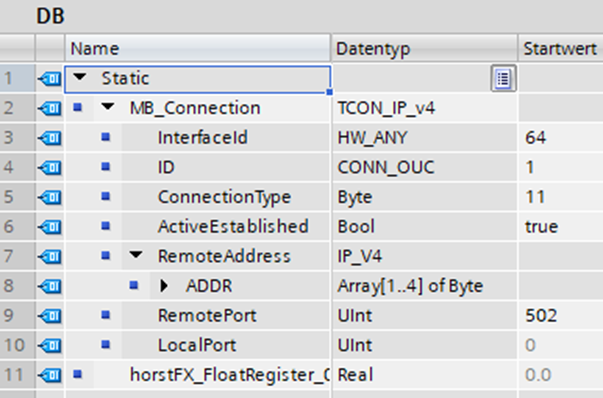

For the sake of completeness, the data block used for this example is shown below.
The parameters for establishing the connection can be found under the variable MB_Connection.
The value of the bool register 0 is written to the variable horsFX_BoolRegister_0.
The associated TIA project can be downloaded here:
3. Reading horstFX Integer Registers
Learn how to read a 32-bit integer value from two Modbus-Holding-Registers (Address 1000 and 1001) in Siemens TIA Portal (v16) with this step-by-step guide.
3.1 Function Block

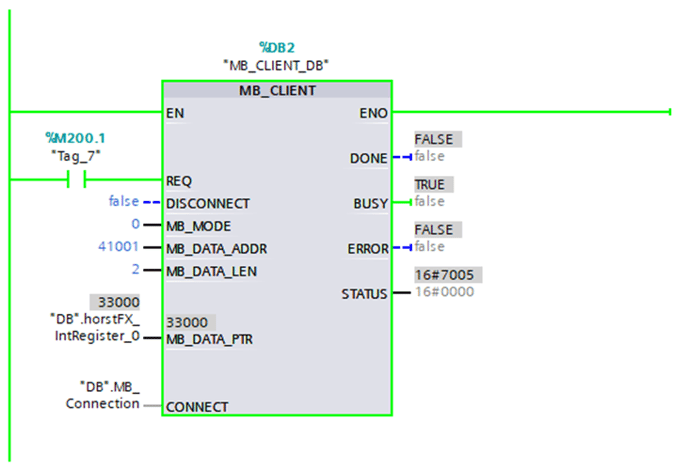

The MB_CLIENT function block is used to read two words (4 bytes) from the Modbus registers.
In this function block, the Modbus holding register starts at MV_DATA_ADDR 40001, which corresponds to holding register entry number 0.
As the integer registers start at address 1000, MV_DATA_ADDR 41001 must be transferred to this function block (40001 + 1000) in order to query the value of integer register 0.
As two registers have to be read, the MB_DATA_LEN is 2.
The value is written to the variable MB_DATA_PTR if the read-out is successful. This must be of type DInt.
3.2 Data Structure

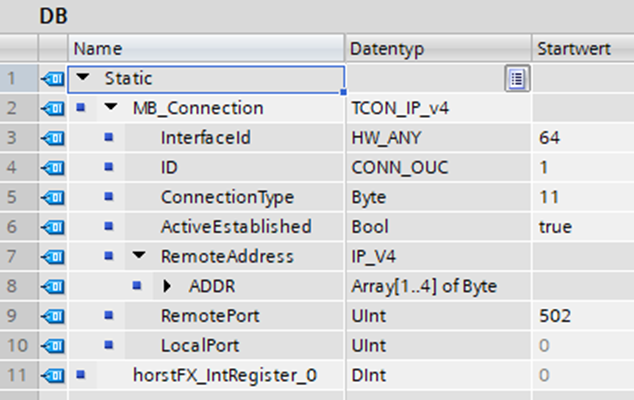

For the sake of completeness, the data block used for this example is shown below.
The parameters for establishing the connection can be found under the variable MB_Connection.
The value of the integer register 0 is written to the variable horsFX_IntRegister_0.
The associated TIA project can be downloaded here:
