Robot system data
The robot system data displays information on the running performance of the individual axes and on errors that have led to a Category 1 stop.
horstCOSMOS

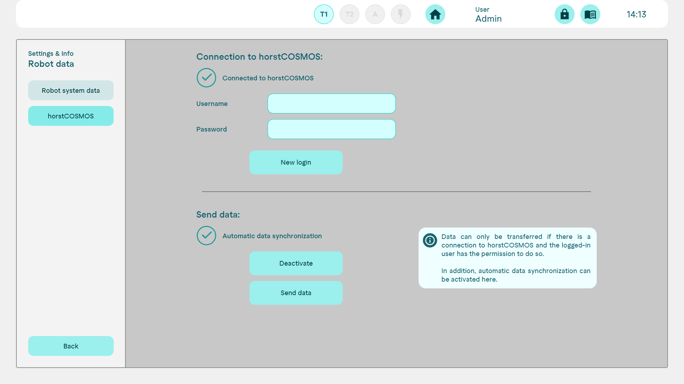

In the horstCOSMOS menu, a connection to horstCOSMOS can be established by logging in and data can be transferred to horstCOSMOS.
The data that is transferred consists of various robot system data wie beispielsweise process data, programmes and error logs from the log console.
When the data is transferred, the programmes stored in the standard storage location (save folder) are also sent to horstCOSMOS or saved online. You can check whether a programme has been saved online on horstCOSMOS in the file manager.
Programmes saved online on horstCOSMOS are marked with a cloud symbol:
.
As soon as a programme is changed after it has been transferred to horstCOSMOS, the changes are not automatically saved online on horstCOSMOS unless automatic data transfer is activated. To save the changes and thus the current status of modified programmes online on horstCOSMOS, the data must be transferred again.
